Technical Specification

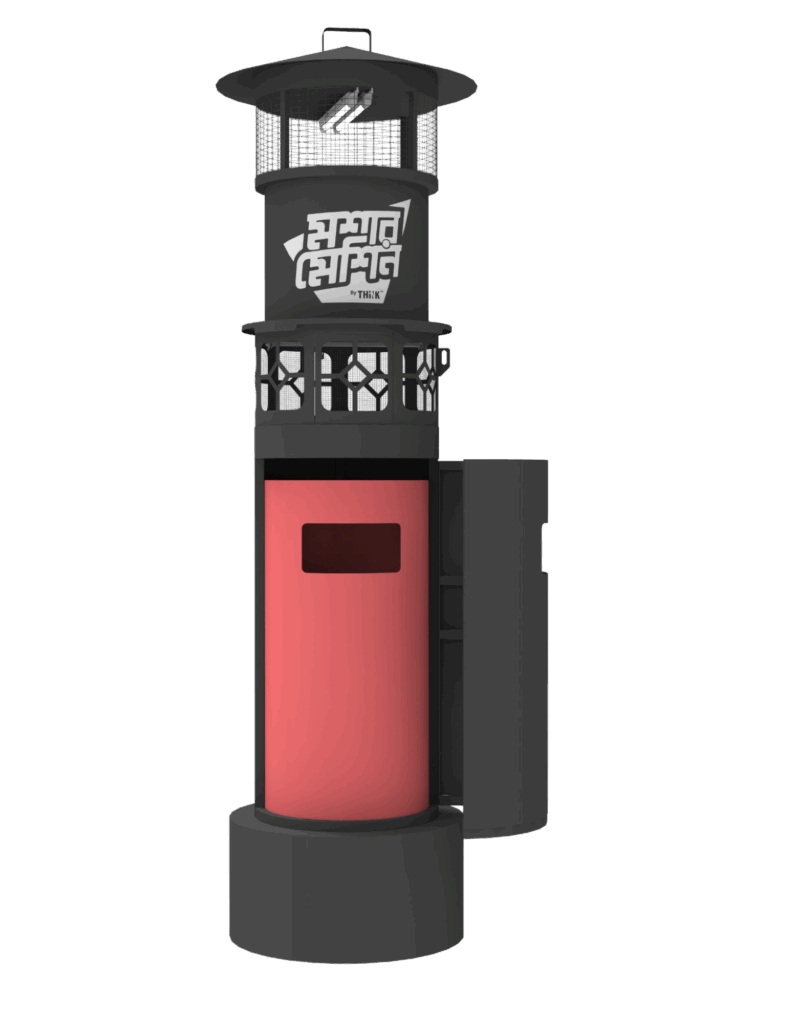

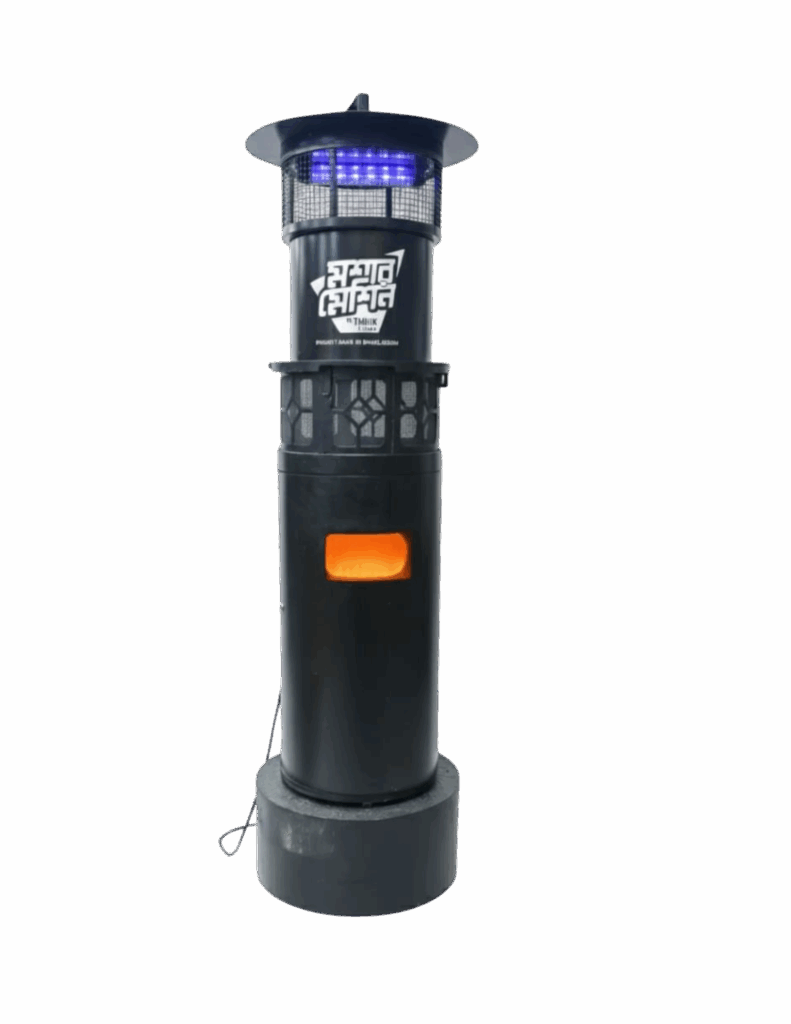

3-in-1 multifunctional Device
Dustbin + mosquito trapper + walkway light
Model:XU7000
The XU7000 is a cutting-edge, industrial-grade multi-functional device engineered for high-footfall public spaces. Designed specifically to meet the deployment needs of urban environments such as parks, schools, hospitals, mosques, roadsides, and areas near water bodies, the XU7000 offers removable dustbin with case, mosquito trapping and light system making it ideal for modern cities.
Technology
Developed in Bangladesh by THiNK LABs, the XU7000 is a fully indigenous, environmentally friendly multifunctional device. It replicates the biological cues that attract female mosquitoes, the primary transmitters of diseases such as dengue, malaria, chikungunya, and Zika.
At its core, the XU7000 utilizes a photocatalytic process, where a specialized light source interacts with a proprietary coating to mimic human respiration, attracting mosquitoes into the device where they are effectively trapped.
Heavy-Duty Construction
The XU7000 is engineered for long-term outdoor performance in challenging urban environments:
Frame: 1.0 mm powder-coated mild steel for enhanced durability
Designed to withstand rain, heat, dust, and humidity without performance degradation.
Base: 10-inch concrete foundation for stability and water resistance
Operational Coverage
The XU7000 is capable of covering up to 100 meters in radius for mosquito attracting, making it ideal
for large public areas. Strategic deployment can drastically reduce mosquito populations in:
Public parks and playgrounds
Hospitals and clinics
Educational and religious institutions
Roadside installations and canal-side embankments.
Technical Specifications:
- Dimensions (H x W): 1921.94 mm x 554.80 mm
- Weight: 146 KG
▢ Body – 32 kg
▢ Base – 114 kg
- Materials: 1.0mm Mild Steel Sheet, Galvanized Sheet and half inch square hollow box.
- Color: Matte Black.
Light Features
- UV-A Cool White Light
- Wattage 16 W (Rated)
- Fluorescent light
- Light Tube should be removable from holder
- Base: 10.0 inch thick and 21.0 inch diameter CC Concrete base.
- Coverage Area: 100m (approx.)
- Bin Dimensions: 711mm X 350 mm
- Bin materials: High-Density Polyethylene (HDPE)/ Fiber Reinforced Plastic (FRP)
- Bin Features: Removable, washable, lightweight, UV-resistant
- Bin Handling: Bin case has a door with identical locking system which can be opened during waste removal.
- Bin Capacity: 40-60 Liters
Mosquito Trapper System Features
- The mosquito trapper system mimics human presence through heat and light
- The system is suitable for continuous 24/7 operation.
- Weather resistant and corrosion proof design, suitable for prolonged outdoor use.
Power:
- Motor- 64.0 Watt.
- Total power consumption per hour- 80 Watt.
